Include Optional Columns

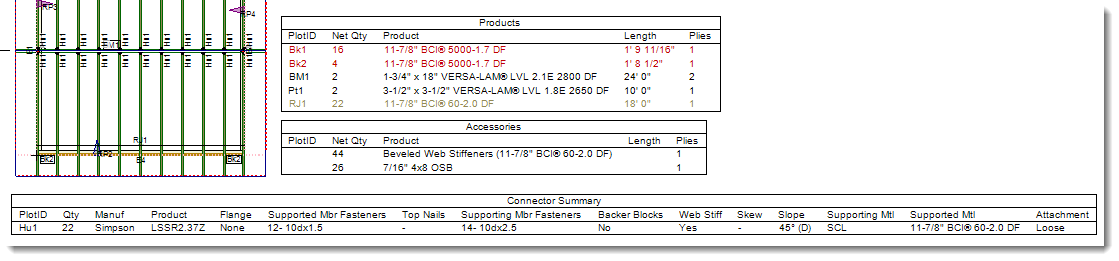

The Connector Summary can include twelve optional columns. They can be turned on, off or you can choose which ones to show.

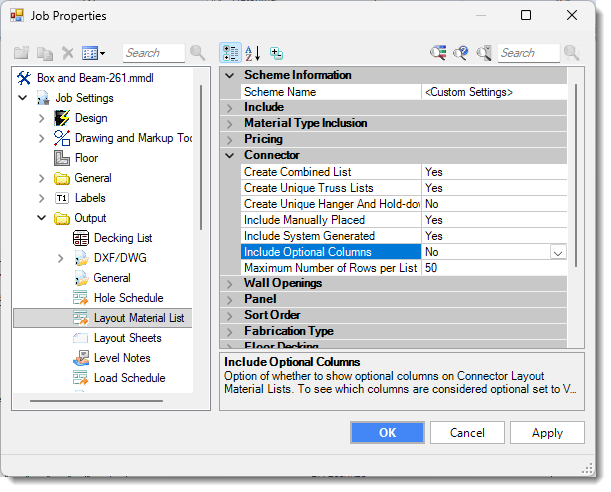

Go to Job Properties > Job Settings > Output > Layout Material List.

  1. If the option is set to "No" none of the optional columns will be shown.
  2. If the option is set to "Yes" all of the optional columns will be shown.

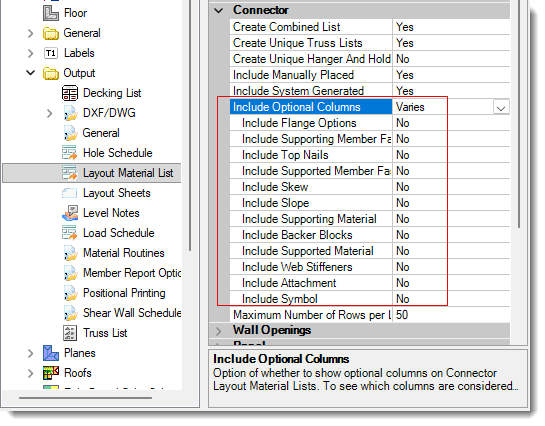

  3. If the option is set to "Varies" you can choose optional columns to show and hide.
  4. If you want this as part of new projects automatically, make the change in Manage Job Properties.
