Exporting and Importing a Full DataMover Backup of your User Settings and data.

We're all pretty partial to our personal settings in the software we use everyday! Did you know BC Framer® software comes with a great backup tool built-in?

Please note that steps discussed in this article are only the most basic operations of the DataMover application in BC Framer. In the exercises below the backups are to include *all* user settings and would overwrite the settings of the destination database when imported using the method described.

DataMover can also be used to take partial backups of very specific settings and can also migrate user pricing information.

NOTE: The methods described here will include pricing by default. There are some options around this however, shown under the Options drop-down menu:


For additional help exporting/importing data from your database, please contact the EWP Software support team.

Exporting a DataMover (mdmf) Backup of All User Settings

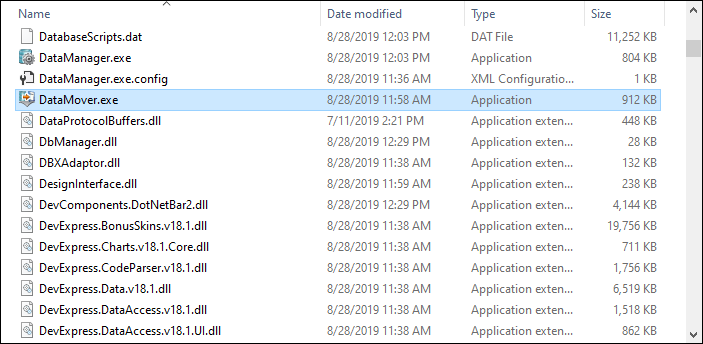

The DataMover program used to take the backup is found in the BC Framer installation path, under the folder named Program (example: C:\Program Files\Boise Cascade BC Framer\Programs).

1. Run the file named DataMover.exe

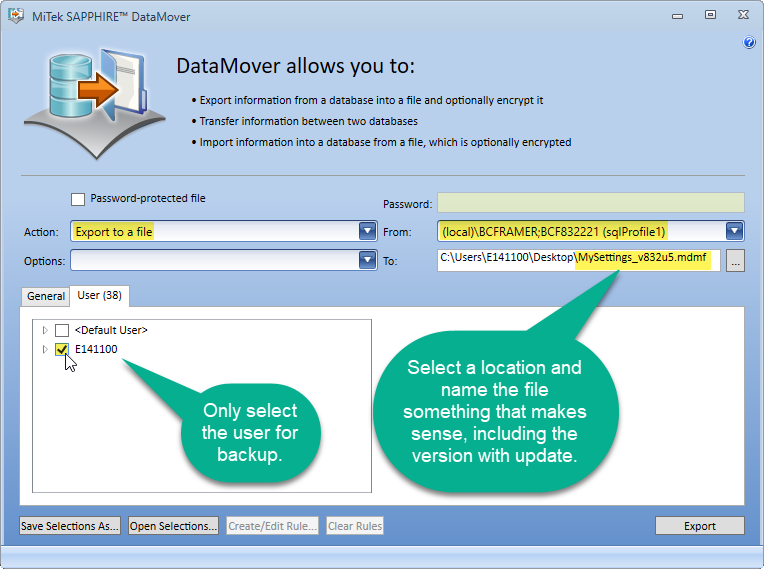

2. Action: Select Export to a file.
3. From: Select your SQL Profile.
4. To: Select a location to save to and name the file with the version and update in the name.
5. Click the User tab and select the checkbox next to the user's data to be be backed up.
(more below this image)

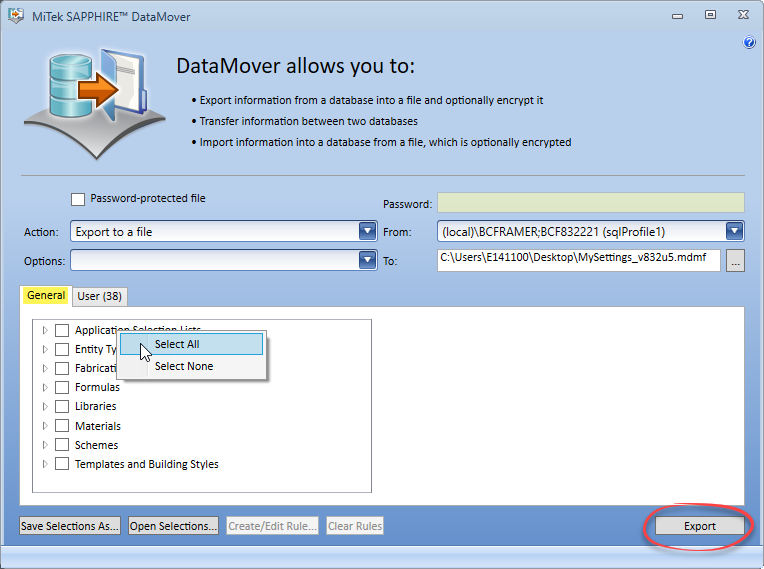

6. Click the General tab and right-click the top item, then left-click Select All
7. With all check boxes under General checked, click Export

Once the processing finishes the status in the bottom left should say Export Complete.



Back to top


Now for the import...

Importing a DataMover (mdmf) Backup of All User Settings


On the destination machine/database - The program used to import an mdmf backup file is located in the BC Framer installation path, under the folder named Program (example: C:\Program Files\Boise Cascade BC Framer\Programs).

1. Run the file named DataMover.exe

2. Action: Select Import from a file.
3. From: Select your locally saved backup (mdmf) file.
4. To: Select your SQL Profile.

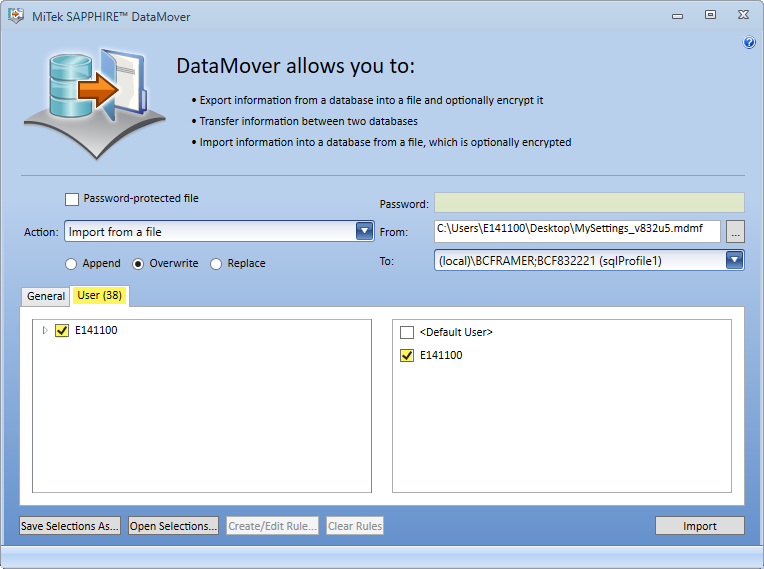

5. Click the User tab and mark the checkbox next to your origin (left side) and destination (right side) users.
(more below this image)

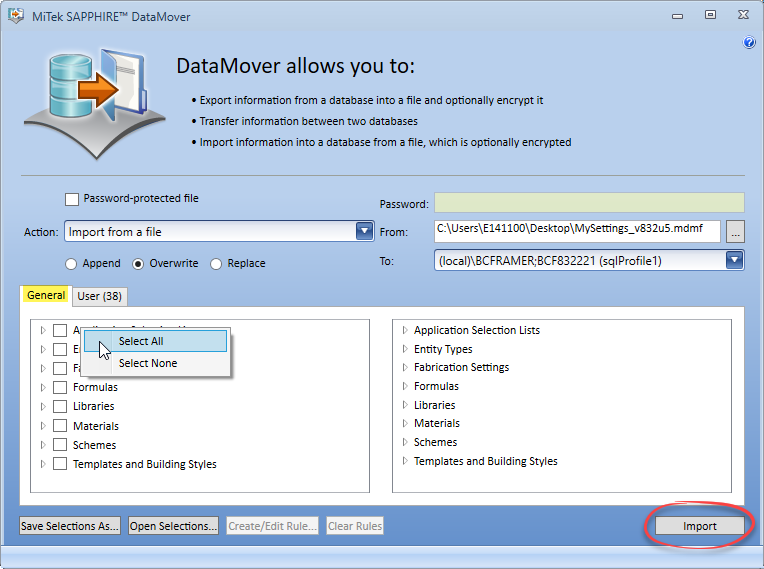

6. Click the General tab and right-click the top item, selecting Select All
7. With all check boxes under General checked, click Import

Once the processing finishes the status in the bottom left should say Import Complete.

NOTE: BC Framer will need to be restarted to recognize and show the new changes to the database.

Back to top
