Why are the floor joists, rim and beams displayed in colors that are different than those chosen in Program Settings?

The program is using "Color Member By: Product (Fill) or Product (Line)". These settings affect the member colors in the model as well as the Layout Material List colors.

To modify this behavior:

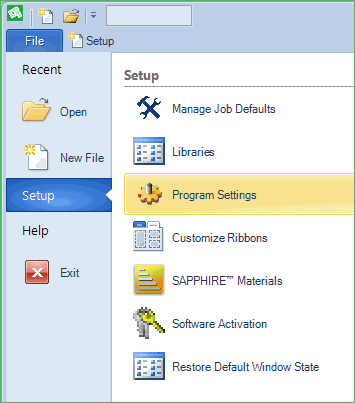

  1. Navigate to File > Setup > Program Settings.

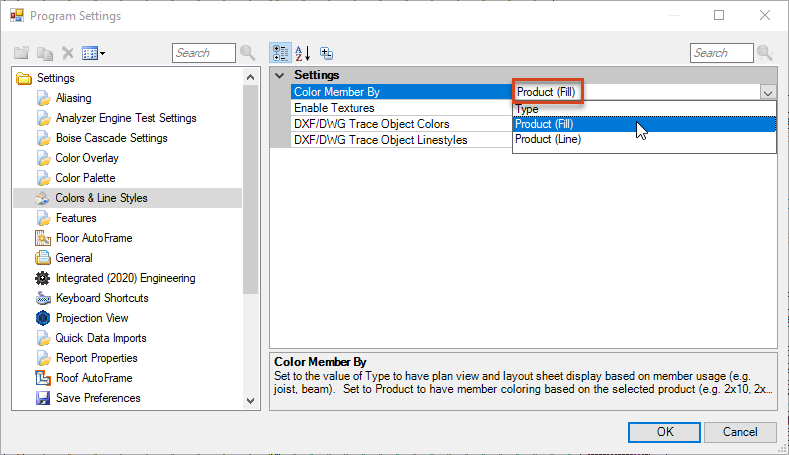

  2. Under Colors & Line Styles, change the "Color Member By" to "Type" instead of "Product (Fill)" or "Product (Line)".


  3. Click OK to save the change.
  4. Click on a joist to see the colors change, or restart BC Framer® software.
