How to consolidate hangers of the same type in BC Framer Material List? There are too many separate plot IDs.

To reduce the number of hanger tags in BC Framer® software you can modify the consolidation preferences. These steps will affect the job properties for this job only.

  1. In BC Framer, click: File > Setup > Job Properties
  2. On the left choose Job Settings > Design > Connector Design

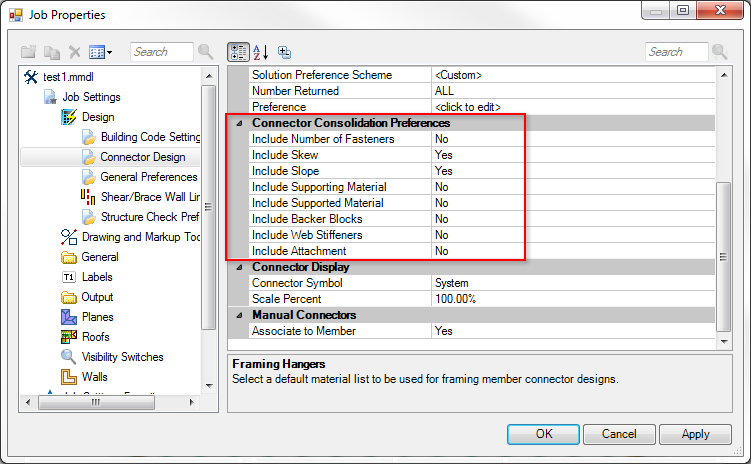

  3. On the right under Connector Consolidation Preferences  - make selections for consolidation.
  4. Click OK
  5. You may need to create a new connector material list.


  For future projects edit your schemes in File > Setup > Manage Job Defaults.
