Display Framing Members With Full Width
BC Framer® software can display framing members as full width or single lines. If you prefer the full member representation, change the settings as shown below.

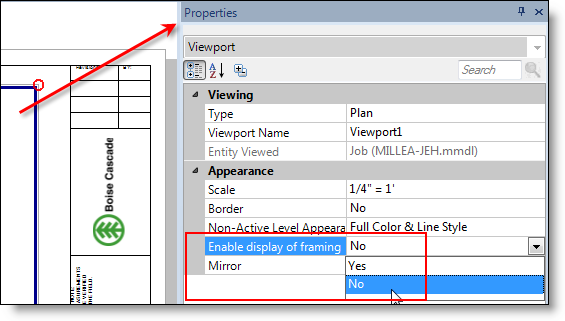

On the layout sheet, select the viewport and then look at the properties grid.
Appearance:
Enable display of framing members as lines: Set this to "No".
To hide this option for all future sessions, change a setting in Program Settings.

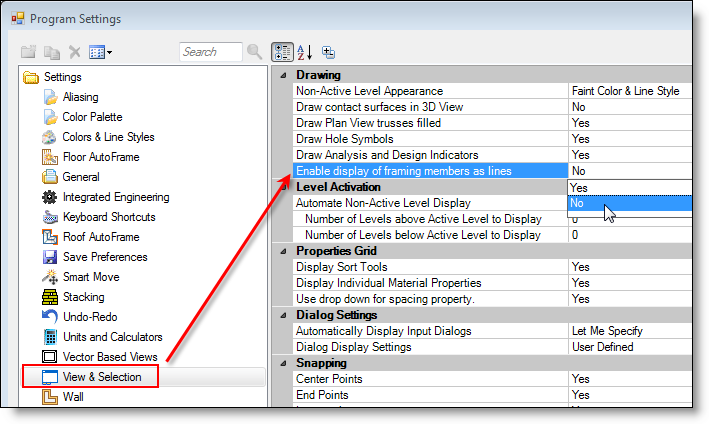

File > Setup > Program Settings > View & Selection > Drawing:
Enable display of framing members as lines: Set this to "No".
This option will no longer be available on the layout page.
