Sharing a Sheet Template With Another Designer.

Sharing a sheet template with another designer.

Send the other designer a BC Framer® software file with a layout sheet that you want to share.

Another designer can then open this file to save it to his own template.

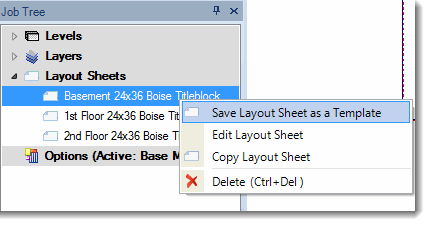

1. Under Job Tree, Right-click the layout sheet.

2. Choose Save Layout Sheet as a Template.

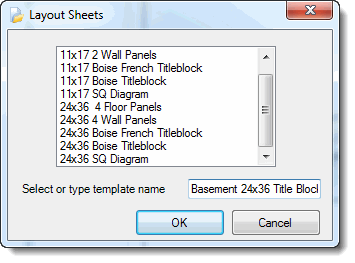

3. Select an existing layout sheet to save over or type a new name to create a new layout sheet.

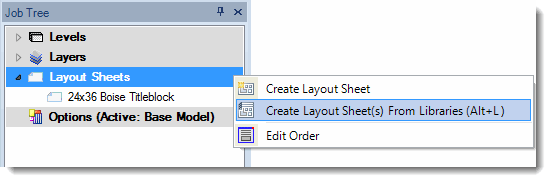

To use the new Layout Sheet, right-click "Layout Sheets" and choose Create Layout Sheet(s) from Libraries.

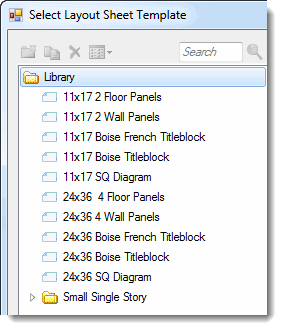

This will bring up the list of available templates in the Library. Select a template and click OK.


Other designers can also use DataMover to share specific parts of their BC Framer database including Layout Sheet Templates. For instructions on how to share databases with Data mover please click here.
