How do I show joists as a single line on the layout sheet?

Display Framing Members as Single Lines

This has to be enabled in Program Settings, and then set in the Layout Plan Viewport properties.

Go to the Back Page > Setup > Program Settings > View & Selection > Drawing > Enable display of framing members as lines - set to Yes.

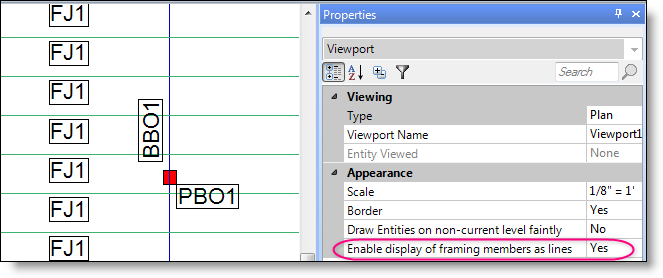

Now go to the Layout tab and select the plan viewport. You will now have a new option to "Enable display of framing members as lines". Set this to "Yes".
