Why doesn't the floor sheathing align joints correctly on 19.2 inch centers?

The floor sheathing is aligned by default at 48".

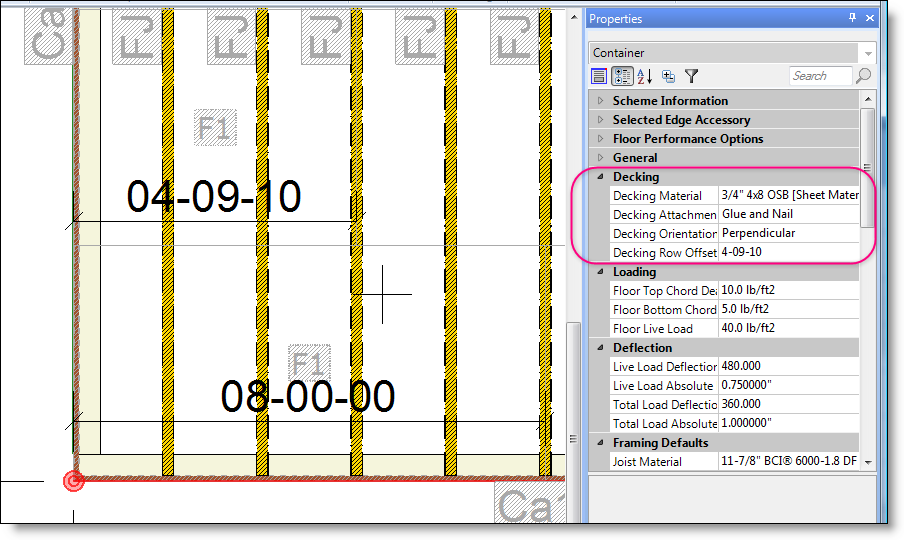

Change the floor container properties:

Decking > Decking Row Offset from 4' to something you choose that matches the 19.2" oc format. 57.6" (4' 9-5/8") works to align the sheathing joints correctly.
