When drawing walls the cursor is not staying ortho. It jumps to snaps instead.

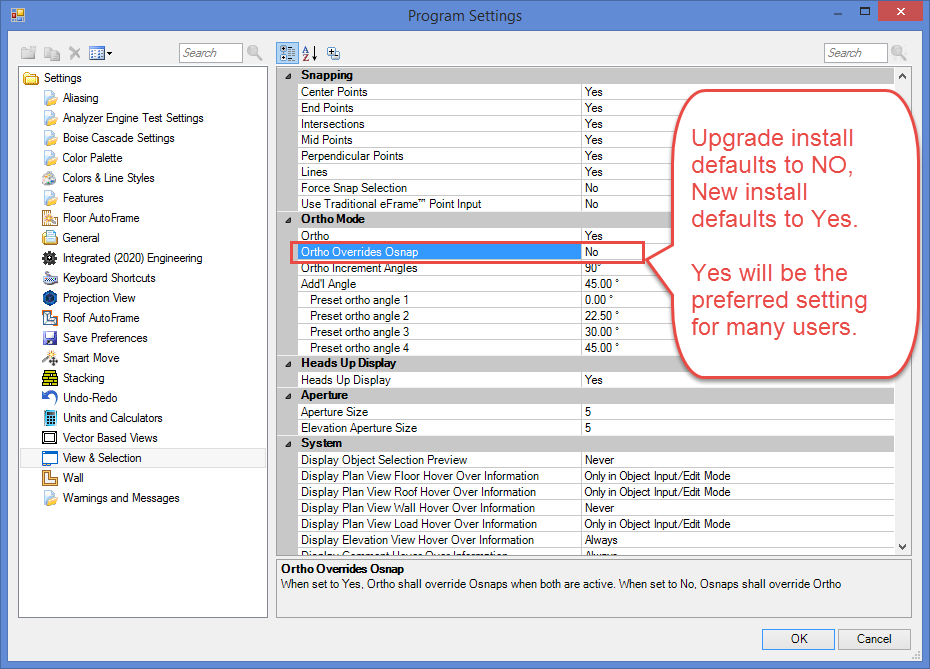

There is a Program Setting switch in BC Framer® software that controls this snap behavior. "Ortho Overrides Osnap".
Program Settings > View & Selection > Ortho Mode > Ortho Overrides Osnap.

  • Yes = Ortho will control line direction. (Recommended setting)
  • No = Osnap will control line direction. (The program may snap to a point at an odd angle.)

Press CTRL key to override control method: When Ortho is controlling, holding the CTRL key will enable Osnap.
