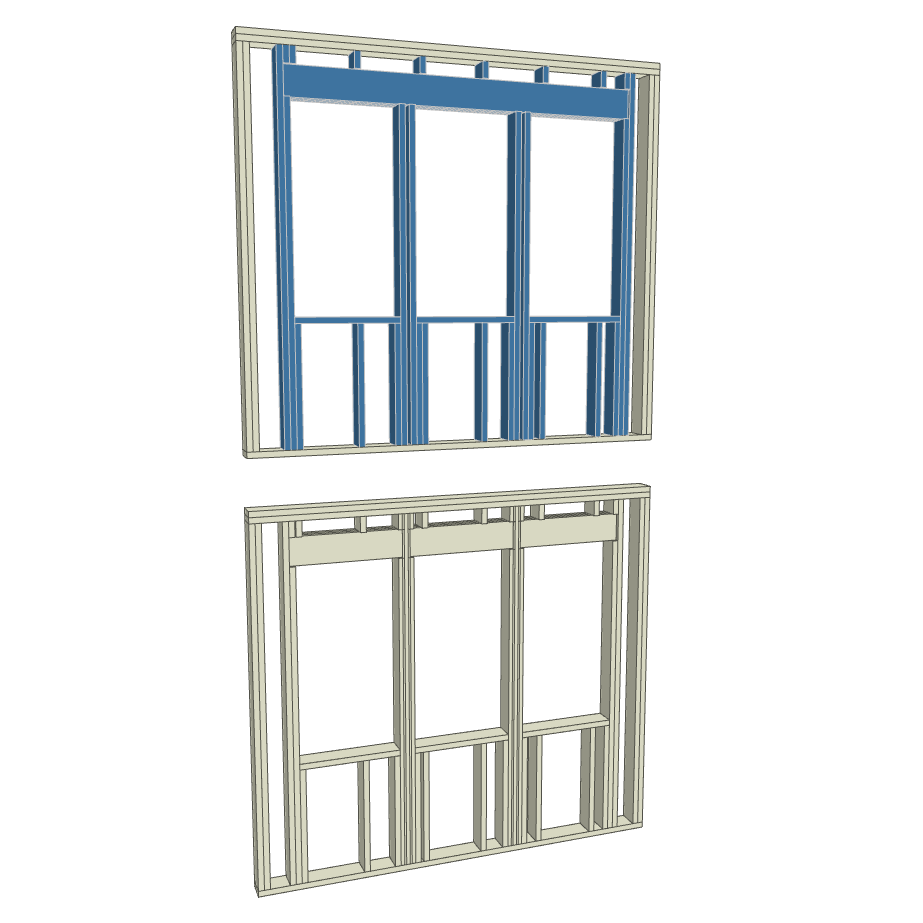

Merge multiple openings to share the same header.

It maybe required or beneficial for multiple openings to have one continuous header. BC Framer® software makes it simple to achieve this in just a few steps.


To accomplish this, simply input your openings, then select all of the openings while holding the Ctrl key. With the openings selected, in plan view, right-click and under the Wall sub-menu, select Merge Header.


To reverse this action, simply repeat the steps and select Break Header.
