Send to BC Calc® Offline

The BC Framer® Send to BC Calc® feature is by default configured to send to www.bccalc.com. However, if a user needs to work in Offline Mode, this can be achieved by following the steps below.

Depending upon the version of BC Framer®, the configuration steps will vary.

Select a range that includes your version to begin...
Version 8.2.4.272 - Current
Version 8.1.2.251 - 8.2.3.229

Version 8.2.4.272 - Current

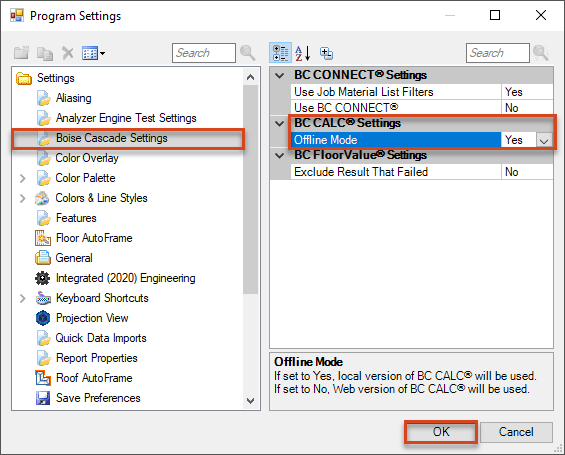

Configure BC Framer® Versions 8.2.4.272 through Current to use Offline Mode:

1. Navigate to File > Setup > Program Settings: Boise Cascade Settings

2. Under BC Calc® Settings, set Offline Mode: Yes

3. Click OK


BC Framer will now send member design properties to BC Calc® Offline Mode for analysis.



Versions 8.1.2.251 - 8.2.3.229

Configure BC Framer® Versions 8.1.2.251 through 8.2.3.229 to use Offline Mode:

1. Navigate to File > Setup > Program Settings: Boise Cascade Settings

2. Under BC Calc® Settings:
- Offline Mode: No
- Use Alternate Server: Yes
- Alternate Server Address: http://bccalcoffline:88/

3. Click OK


BC Framer® will now send member design properties to BC Calc® Offline Mode for analysis.
