Exclude Materials - Adding and Clearing the List

Exclude material from material lists:

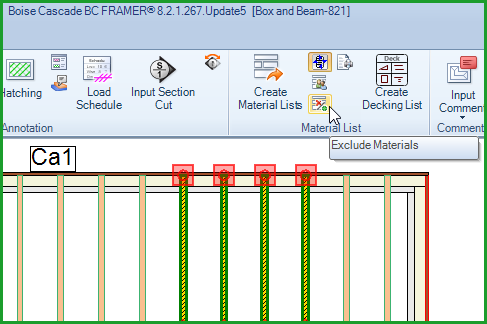

  1. Click the "Exclude Materials" button.
  2. Select material in the model (dark green highlight indicates selection).
  3. Right-click to accept when complete.

Pro-Tip: First select members to exclude, click the Exclude Materials tool, then right-click to accept.



Excluded members will not be shown in the layout material lists or in output reports.



Changing Excluded members to include them again in material lists:

  • If you decide to remove members from the Excluded Material, you may select the tool, and then deselect the highlighted members. Right-click to accept.

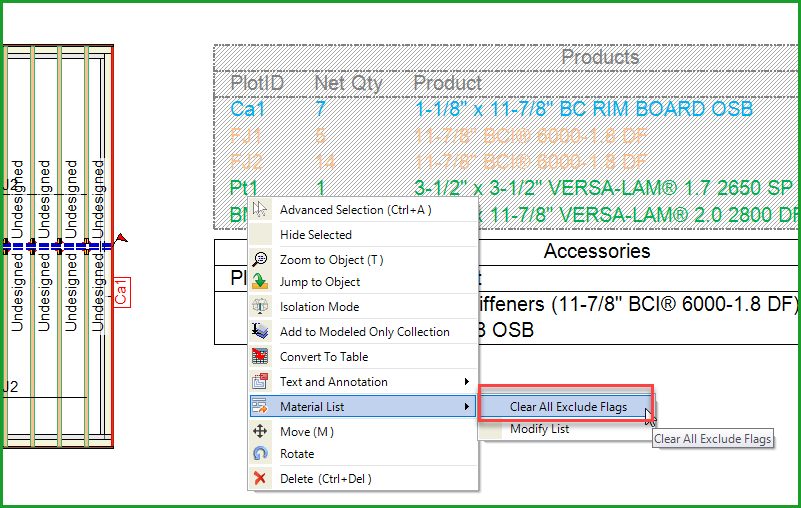

  • To clear the entire list, right-click the material list, and choose Material List > Clear All Exclude Flags.

All members will be included in the material lists.
