Joist Labels With Consolidated Sequence Starting With Level Number

To label joists with consolidated sequence starting with the level number, go to Job Properties.

Note: This setting will affect all labeling: walls, beams, rafters, hangers, posts, etc.

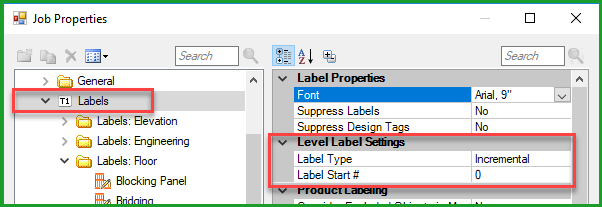

  1. Labels > Level Label Settings > Label Type = Incremental; Label Start # = 0
    (This is a default setting.)
    ​​

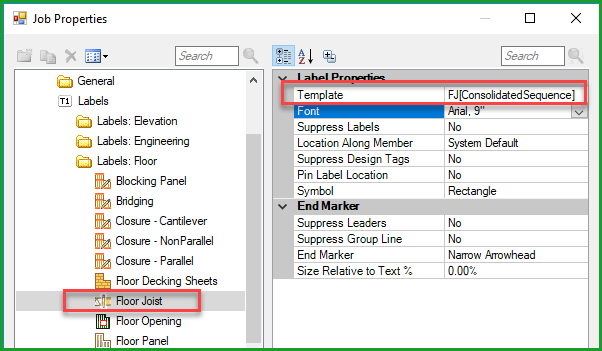

  2. Labels: Floor > Floor Joist > Label Properties > Template = FJ[ConsolidatedSequence]
    (This is a default setting.)

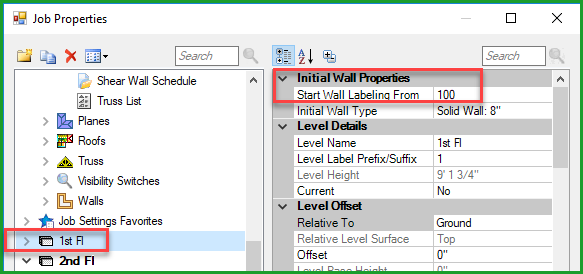

  3. Level (1st Fl) Initial Wall Properties > Start Wall Labeling From = 100
    ​​
  4. Level (2nd Fl) Initial Wall Properties > Start Wall Labeling From = 200 (same as illustrated above, but 2nd Fl).

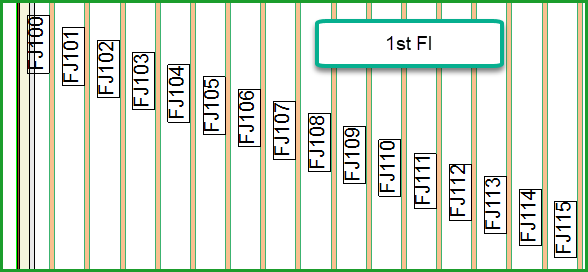

This is the result for 1st Fl:

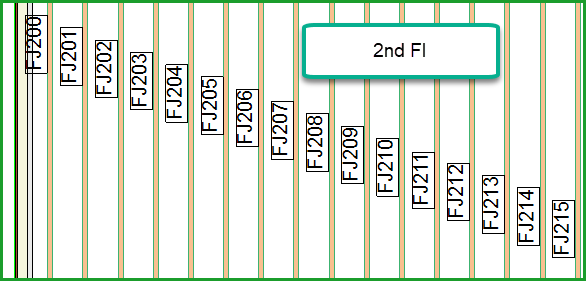

Result for 2nd Fl:
