Adding Additional Loads to a BC Framer Design. (Point Load, Line Load and Area Load)

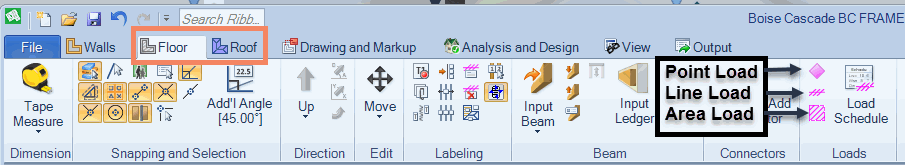

In BC Framer® software select either the Floor or Roof ribbon.  Choose from one of the load types:

  • Point Load
  • Line Load
  • Area Load


Edit the Properties grid magnitude for load type: Dead, Floor Live, Roof Live or Snow. Then follow the prompts at the lower left of the program window to locate the additional load in your model.


See also: Adding trapezoidal (tapered) load. BC Framer
