Adding the BC Framer Plumbing Symbols

BC Framer® Software Plumbing Symbols

Showers, tubs, sinks and toilets. Here is a link to download the DWG files.

Unblock the zip folder and unzip here:
C:\Users\UserName\Documents\BC FRAMER\Symbols

Insert the Symbols in Plan View

From the Framer Plan View tab:

  1. Go to the Drawing and Markup tab.

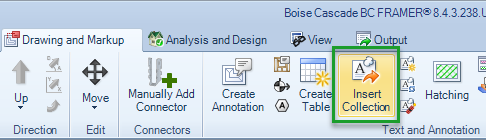

  2. Click Insert Collection.


  3. When you are prompted to browse for the file go to your Documents folder > BC Framer > Symbols.
  4. Change the file type in the lower right drop-down to Autodesk RealDWG (*.dxf,*.dwg).

  5. Click on one of the DWG symbol files and click Open.
  6. You will be brought back to the Plan View and the symbol will be attached to your mouse.
  7. Click once for each symbol of this type you wish to insert using the usual snap tools.

Note: The symbols are not designed to work with a black background. They can be inserted, but will be difficult to see.
