My model has two floor containers at two different heights. Wall above needs support at both heights. How can I do this?

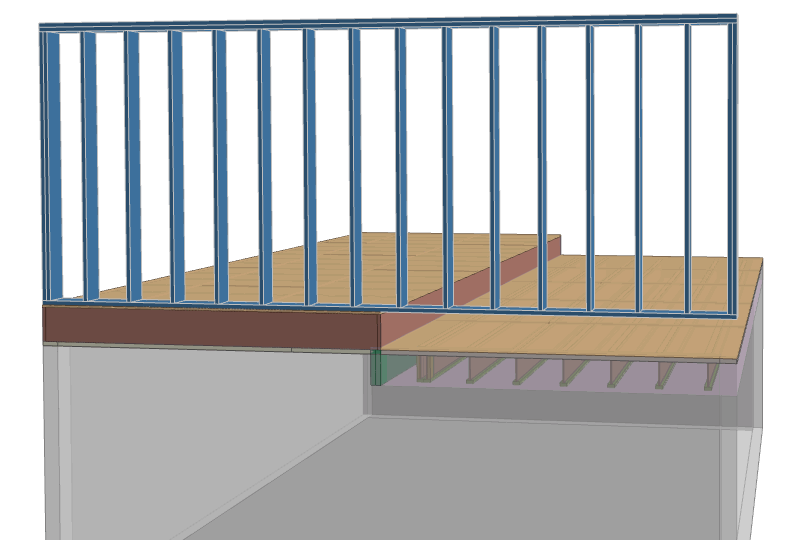

Problem - Wall crosses floor containers of differing heights:

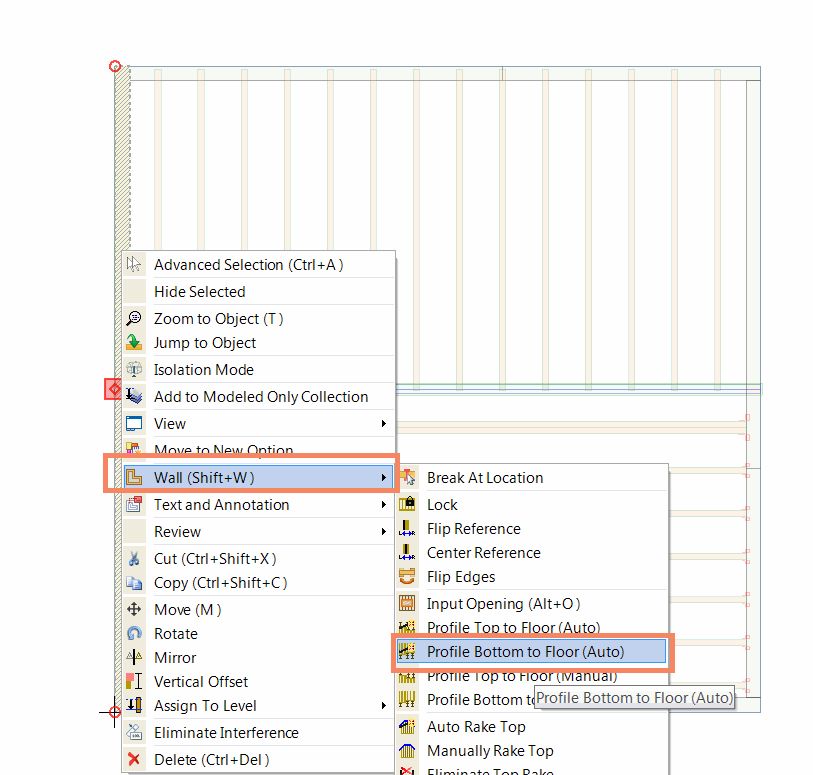

Solution - In Plan View, rake the bottom of the wall to the floor containers. Select the wall and right-click: Wall > Profile Bottom to Floor (Auto)

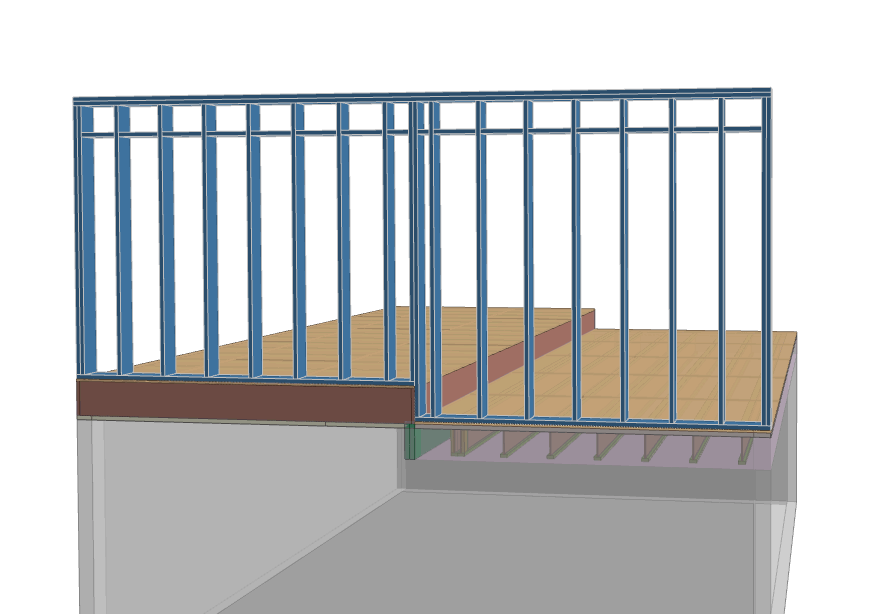

View the modified wall in Solid View (3D).
