How do I add a mono valley framing set?

To Add a Mono Valley:

  1. From the Roof tab > Framing Set, choose Input Framing Set.


  2. Filter the list by Valleys.

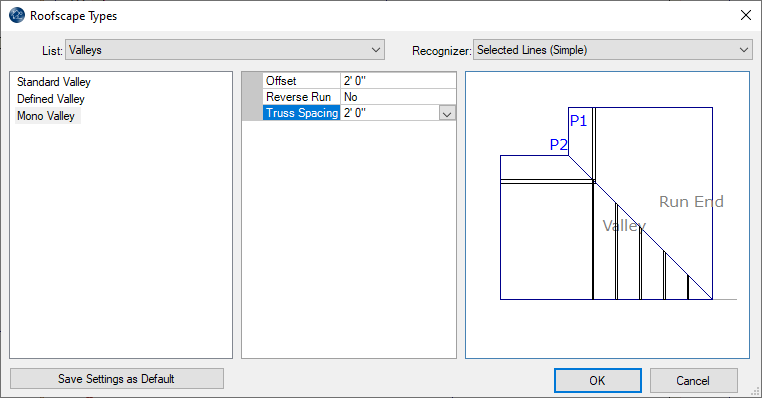

  3. Choose Mono Valley. Typical settings shown. Selected Lines (Simple).

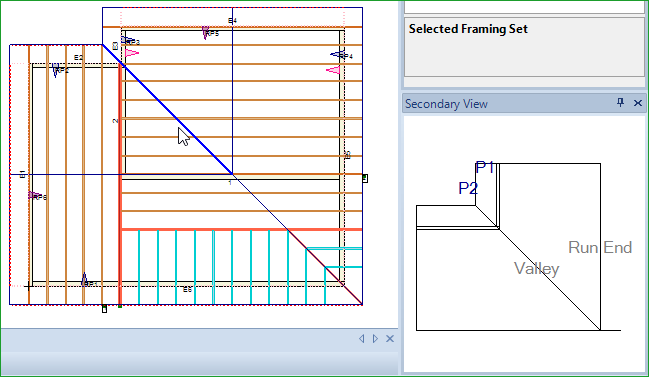

  4. Click on the the Valley Line for Valley.

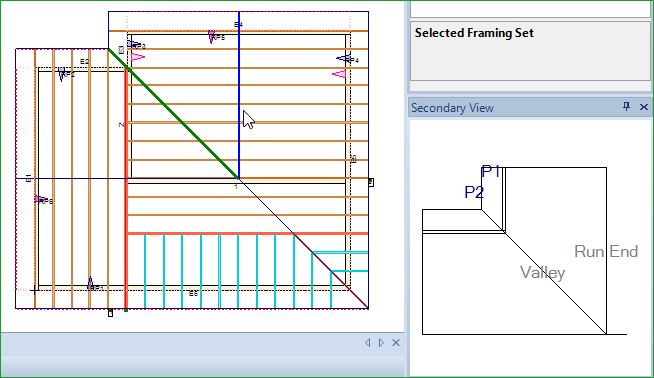

  5. Next, click on the Ridge Line. (Run End)

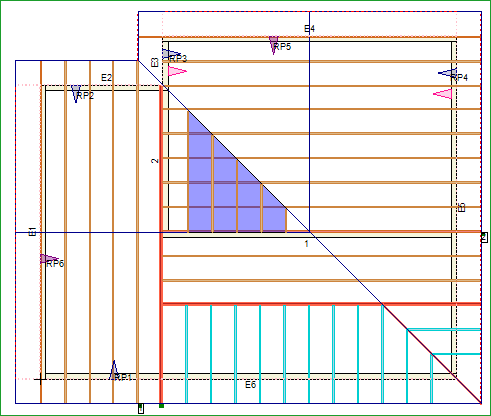

  6. Program shows a preview of the solution with the prompt at the bottom left to "Left Click to accept, Right Click to re-input."

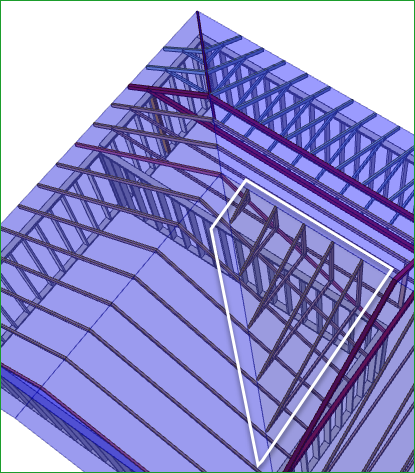

  7. Left click to accept. View the mono valley framing in 3D:
