BC Framer Material Report Incorrectly Shows 60 Ft. Lengths.

Rounding in BC Framer® software is set in Job Properties > Job Settings > Output > Material Routines > Material Length Rounding. If your material is incorrectly rounding to 60 feet, it could be that the MiTek Materials > Material Costing contains a specified length. For example: 60 ft.

How do I correct the material rounding?

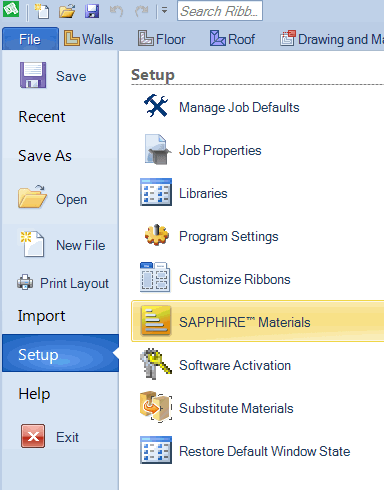

Edit Material lengths in Sapphire Materials. Click File > Setup > Sapphire Materials.

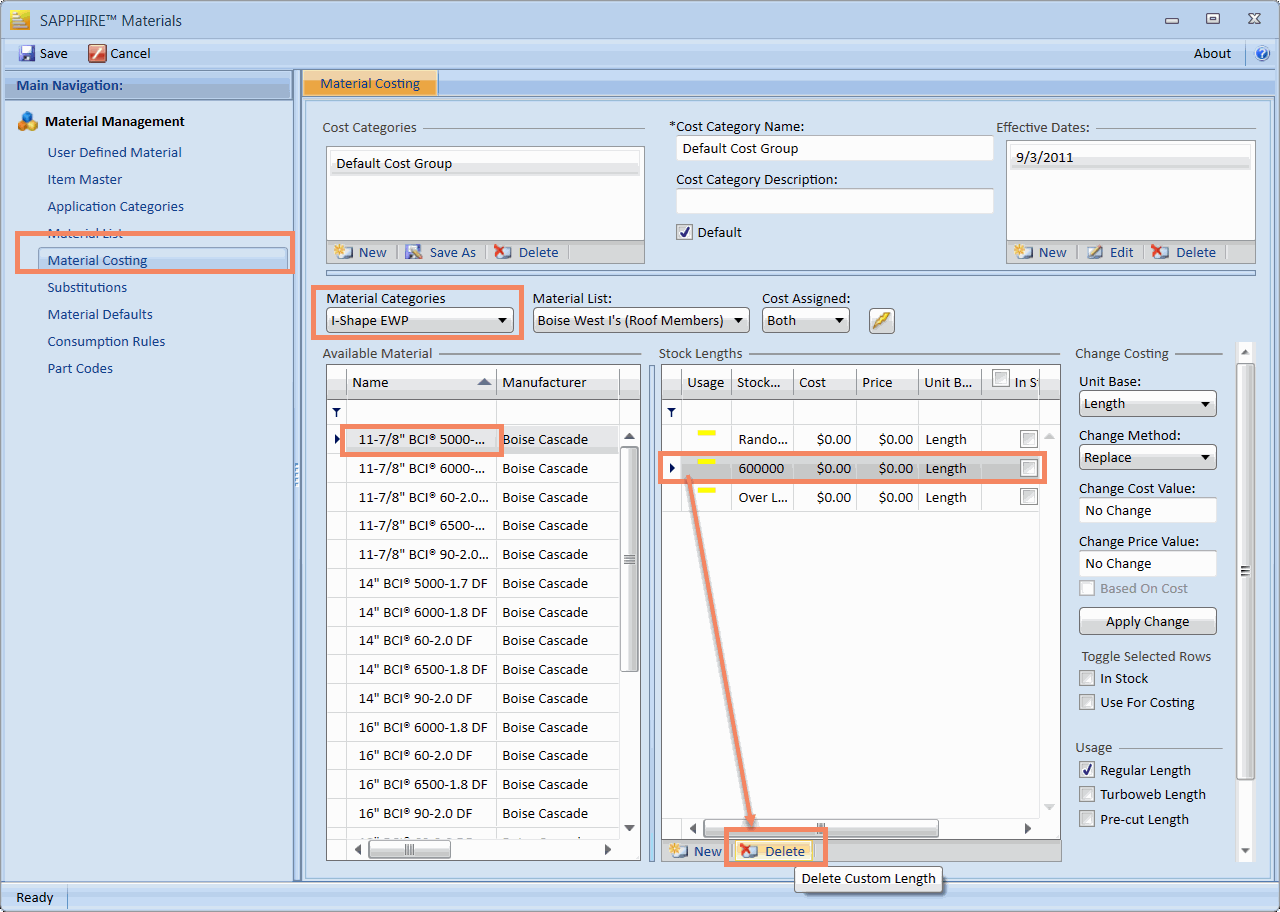

Choose: Material Costing > I-Shape EWP (or Rectangular EWP) Any length of 60 feet must be removed by highlighting the length and the clicking the delete button near the bottom. Random Length and Over Length should be the only two remaining.


Save and close MiTek Materials. Restart BC Framer. Refresh the material list, and the lengths will round correctly.
