How do I print the beam and joist calcs in BC Framer?

You must first Design Members before BC Framer® software can display the report.

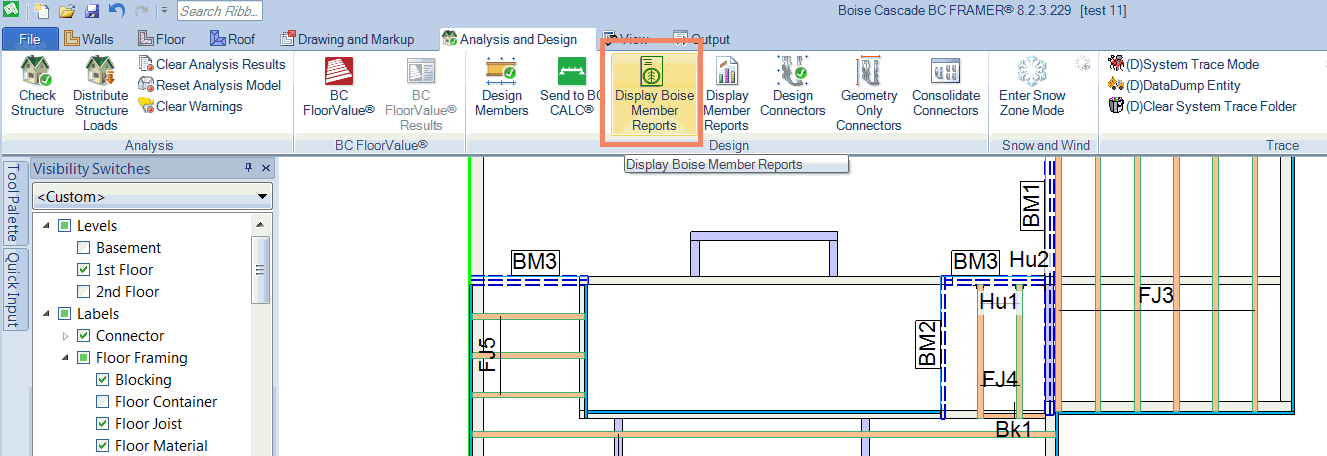

From the Analysis and Design tab, click Display Boise Member Reports.


If you have only one member selected, the program will immediately generate a PDF report of that member.

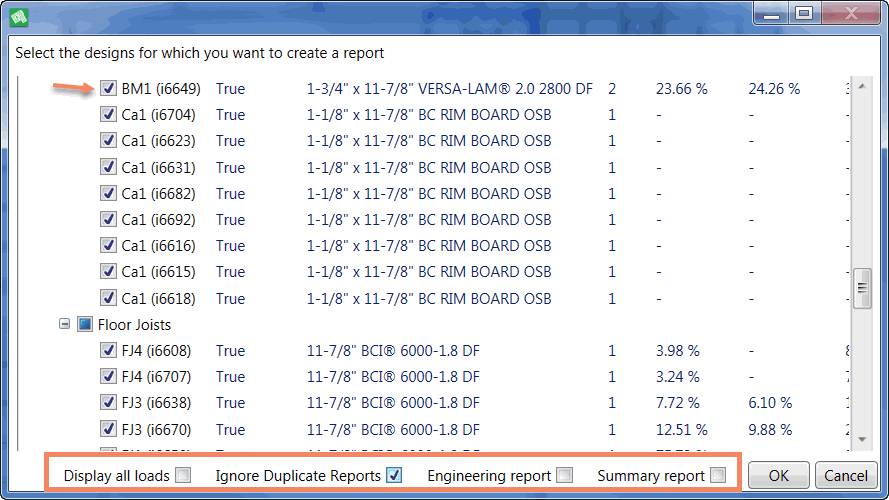

If you have either no members selected or multiple members selected, you will see a list of all the reports that will be generated. Uncheck the reports you don't want to print. You may also choose Display All Loads, Ignore Duplicate Reports, Engineering report or print a Summary report. Click OK.

Note that Display all loads will generate a design report that will match the loads shown when sent to BC Calc® software.

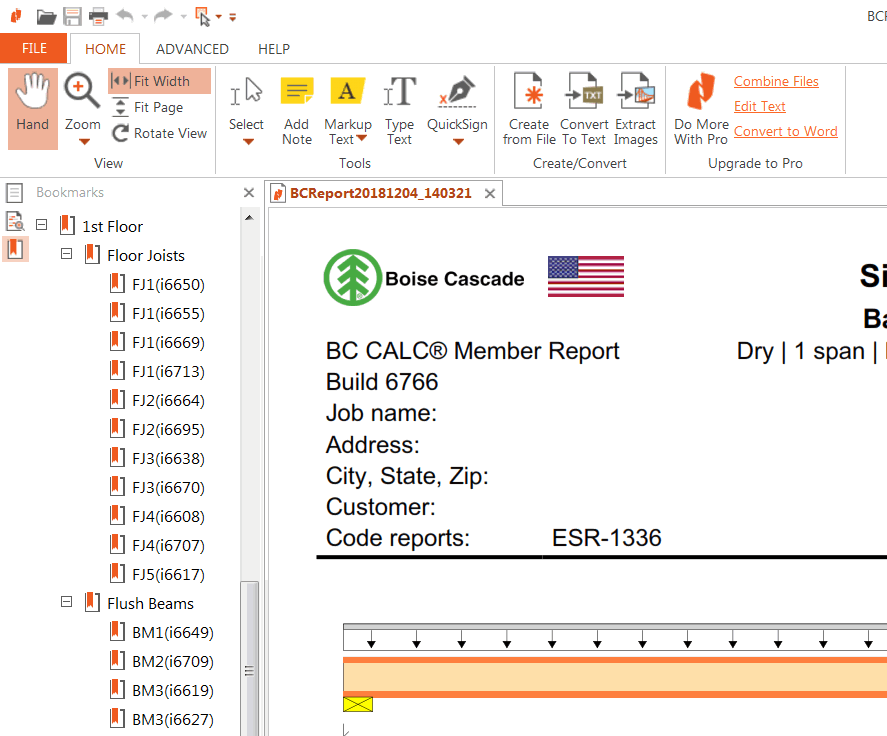

The designs will be generated in one PDF file.
