BC Calc Loads Missing on Member Sent From BC Framer.

If there are errors in the model, no distributed loads are sent from BC Framer® software, and the BC Calc® software design will not show any standard loads. (User added loads will be sent.)

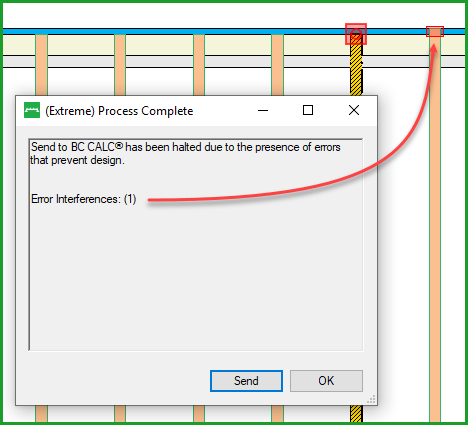

If you send a member to BC Calc and see the following message in BC Framer,


...BC Framer will send only the member geometry, without standard area loads.
You have two choices:

  1. Manually add the correct loading in BC Calc, or
  2. Clear the errors and resend member to BC Calc which will include load distribution information.
