A load in BC Framer is transferring to floor joists instead of the rim.

Rim board is not transferring the load to the wall below in BC Framer® software.

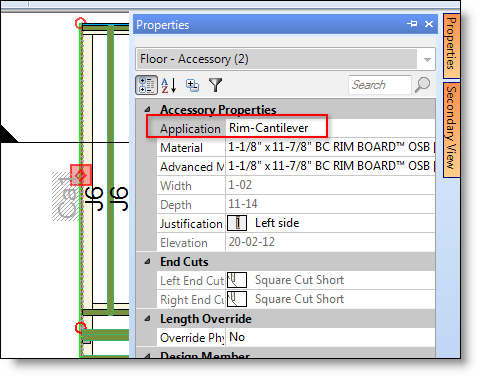

This rim is not taking load because the Application is set to Rim-Cantilever. Change it back to Parallel Closure or Non-Parallel Closure, and the rim will transfer the load as expected.
