How do I draw non-current levels faintly on the layout floor plan?

Drawing Entities on non-current levels faintly in BC Framer® software.

On the layout, select the Plan View port. Use the visibility switches to turn on the levels you want to see.

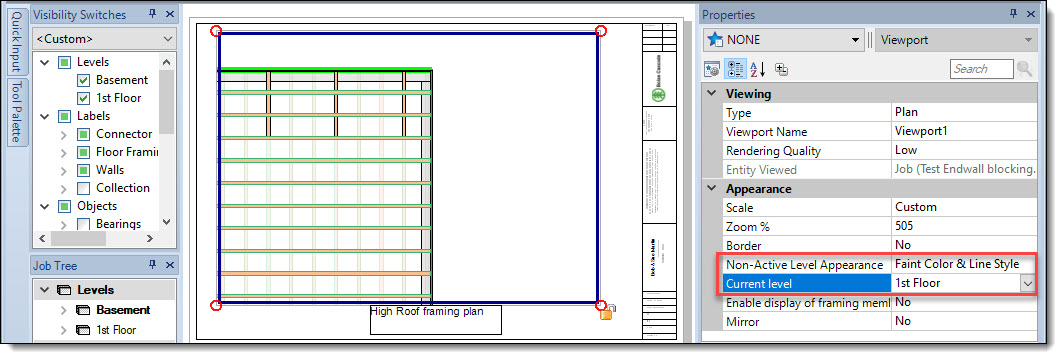

On the plan view port Properties, change the Non-Active Level Appearance to Faint Color & Line Style, and then choose what level you want to be the Current level.

Entities on the current level will be drawn full color, those on other levels will be drawn faintly.
