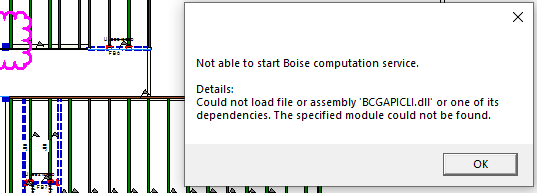

Error message shown when running Design Member:
Not able to start Boise computation service.
Details: Could not load file or assembly 'BCGAPICLI.dll' or one of its dependencies. The specified module could not be found.

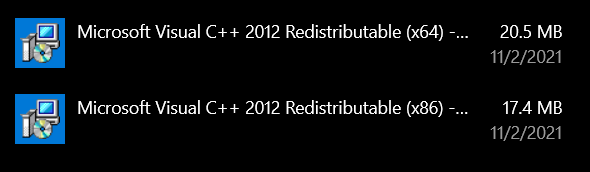

This Boise Design Engine (BDE) failure issue was traced back to the lack of the Visual Studio C++ 2012 redistributable package being installed.
Requires both x64 and x86 (64 and 32 bit) versions.

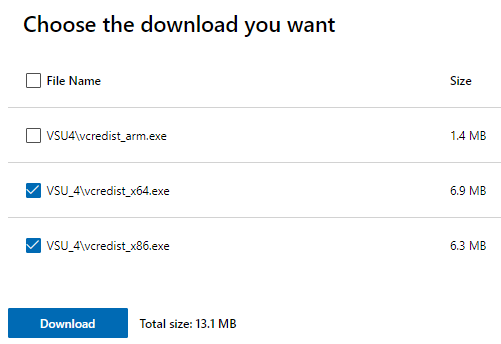

Download and install both of these update packages from the Microsoft website:
https://www.microsoft.com/en-us/download/details.aspx?id=30679
Restart Windows and try the Framer design tool again.
Error trying to run Design Members: Error Loading Design Engine
